2x2 Video Wall Processor Controller S127
Sale price
$37.90
Regular price $116.56
Skip to product information
QUAD-SCREEN PROCESSING – Create a 2x2 video wall from one of the 4 switchable sources: Type-C, 2x HDMI, or DVI. Supports up to 4K @30Hz video walls with a Type-C or HDMI input, and 1920x1200 with DVI
VIDEOWALL MODES – Supports 9 modes: 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 rotation (180º image rotation). Cascading up to a 10x10 video wall

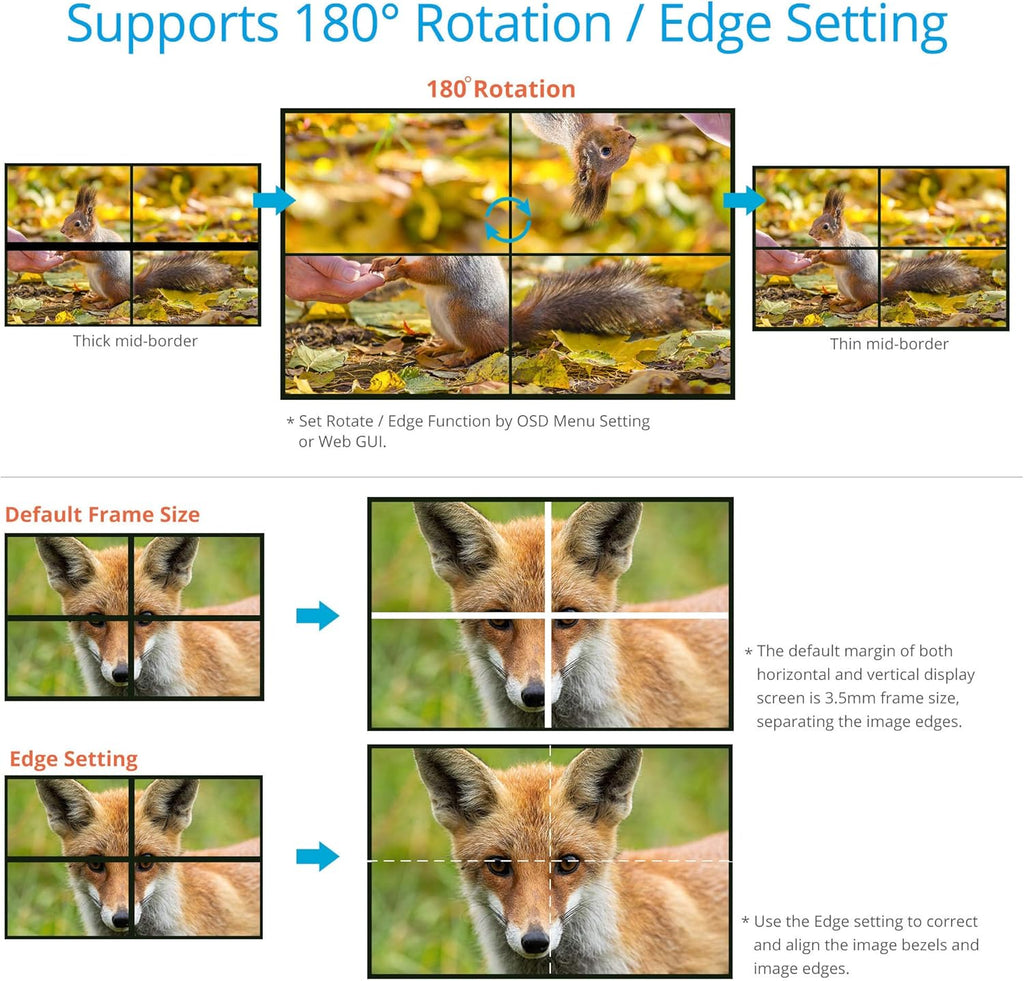

ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, 1U rack mountable, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable

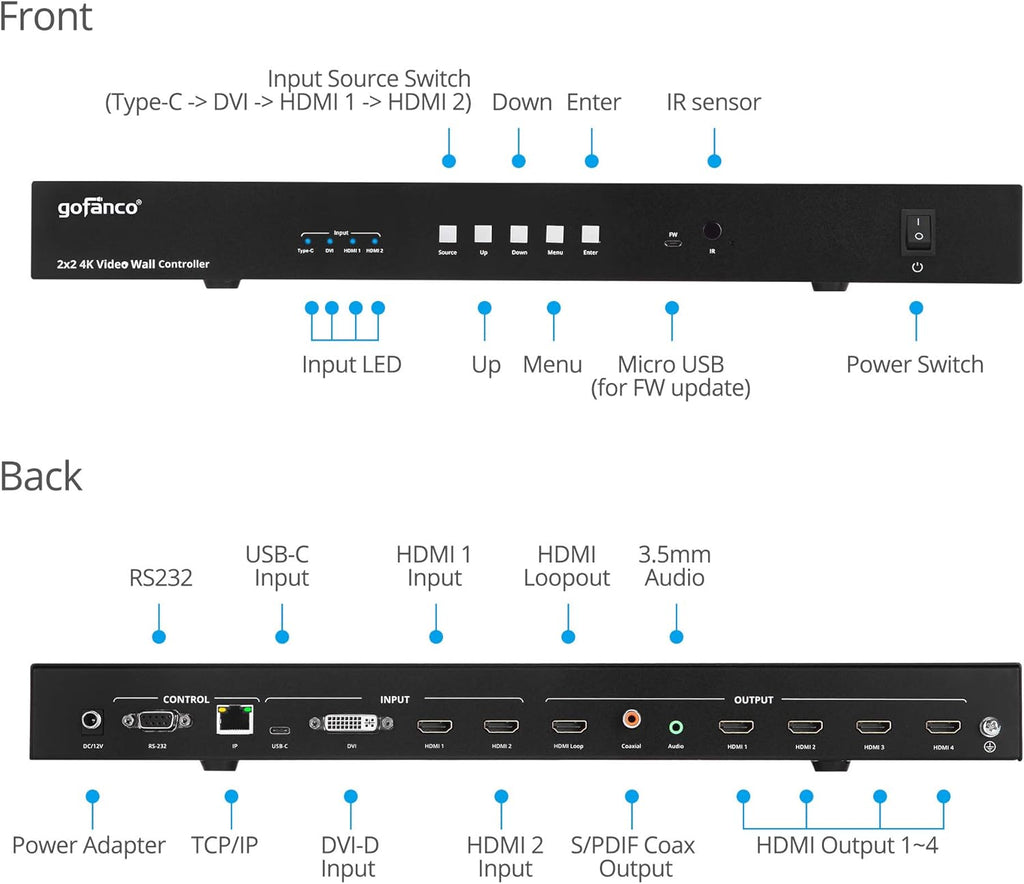

CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons
FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns.
2x2 Video Wall Processor Controller S127
Sale price
$37.90
Regular price $116.56
Shipping calculated at checkout.
QUAD-SCREEN PROCESSING – Create a 2x2 video wall from one of the 4 switchable sources: Type-C, 2x HDMI, or DVI. Supports up to 4K @30Hz video walls with a Type-C or HDMI input, and 1920x1200 with DVI
VIDEOWALL MODES – Supports 9 modes: 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 rotation (180º image rotation). Cascading up to a 10x10 video wall
ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, 1U rack mountable, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable
CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons
FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns.
| PRO-VideoWall | Videowall22 | Videowall33 | |
|---|---|---|---|
| Video Input | HDMI/Mini DisplayPort | USB-C/DVI-D/DisplayPort/HDMI | USB-C/VGA/HDMI 1/HDMI 2 |
| Video Output | HDMI (4) | HDMI (4) | HDMI (9) |
| Max Resolution Output | 1920x1200 @ 60Hz | 4K @ 30Hz * | 4K @ 30Hz * |
| Screen Configurations | 2x2, 1x3, 3x1, 1x4, 4x1 (Cascade up to 10x10) | 2x2, 1x3, 3x1, 1x4, 4x1 (Cascade up to 10x10) | 3x3, 2x2, 1x3, 3x1, 1x4, 4x1, 2x4, 4x2, 2x3, 3x2 (Cascade up to 10x10) |
| Control Methods | Panel Buttons / IR Remote Control / Ethernet / Cloud Software | Panel Buttons / IR Remote Control / RS-232 / Web GUI | Panel Buttons / IR Remote Control / RS-232 / Web GUI |
| Audio Extraction | S/PDIF & 3.5mm | S/PDIF & 3.5mm | |
| 180 Degree Screen Rotation | |||
| Edge Correction | |||
| Preset and Manual Modes | |||
| Supports Cascading |
